What Should a PCB Manufacturing Process Audit Establish?
A PCB manufacturing process audit checklist should help you verify that agreed requirements reach production, that important process controls are applied, and that the supplier can connect results and deviations to the affected boards. Ask for evidence from actual work, not only presentations describing how the factory normally operates.
This checklist is a practical buyer review aid for bare-board fabrication. It is not an ISO or IPC certification checklist, a substitute for the applicable standards, or proof that every board in a shipment conforms. Adapt the scope to the technology, product risk, purchase agreement and your organization’s supplier-approval procedure.
Keep three questions separate: can the supplier demonstrate its process controls, does a particular lot meet its acceptance requirements, and is the supplier approved for your intended work? One factory tour cannot answer all three automatically. ISO 19011 provides management-system auditing guidance; ISO explicitly distinguishes that guidance from certification itself.
How Do You Audit One PCB Job from Order to Shipment?
Select a real, relevant job and trace its identity through the records and operations. Use it as an evidence trail, while expanding the sample when risk or findings justify further investigation.
1. Agree on the scope and criteria
Identify the manufacturing site, board technology, processes included, customer drawings and contractual acceptance requirements. Agree on access, confidentiality and the way findings will be reported. For example, an audit of conventional rigid boards does not automatically qualify the same supplier for a different microvia construction.

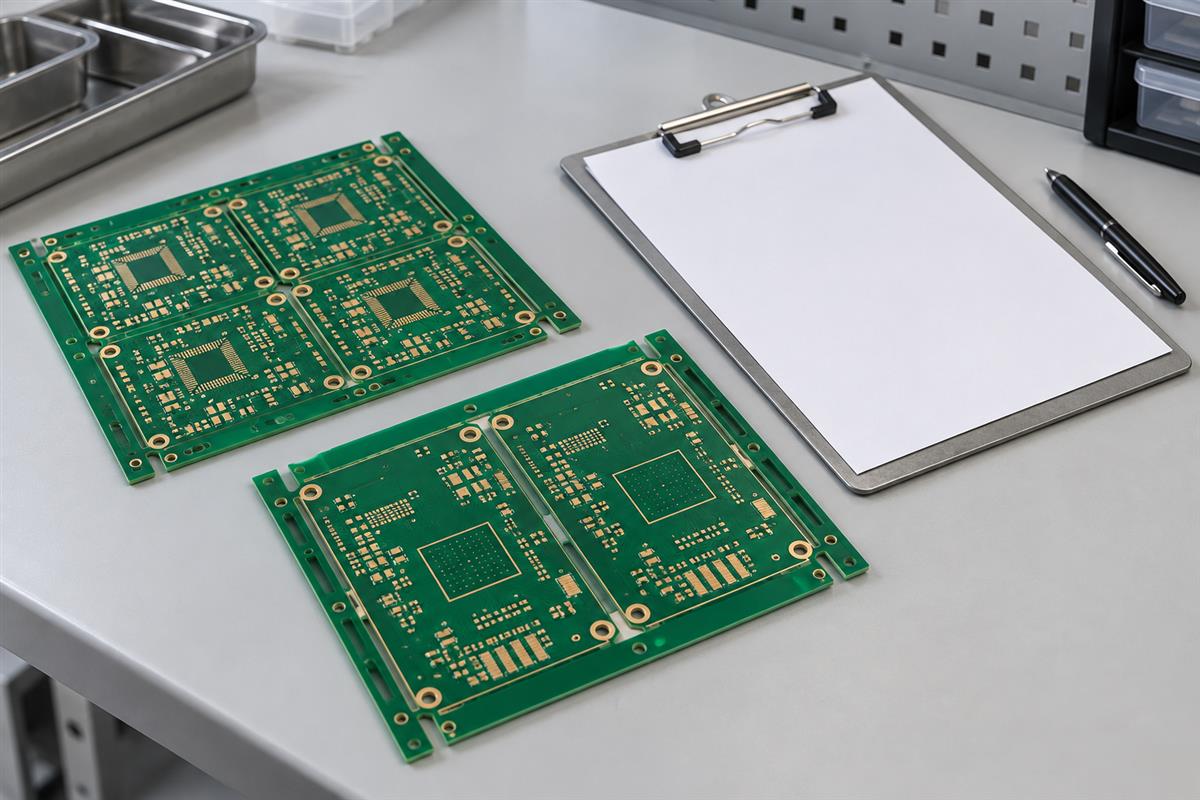

2. Select the job and record its identity
Record the part number, revision, work order and lot identifiers. Choose relevant work rather than relying solely on a demonstration sample prepared for visitors. Explain why the selected job is representative and where it is not. A single sampled job starts the investigation; it is not statistical proof of all production.
3. Follow the released requirements into production
Compare the customer release with the manufacturing package and traveler. Check how approved changes reached the people and systems performing the work. A beautifully controlled document is not enough if the machine program or inspection file belongs to another revision. The related DFM and DFA review checks explain the upstream release questions.
4. Connect operations to their records
At selected operations, ask the operator to explain which instruction applies and how an abnormal result is handled. Then compare that explanation with the job’s actual record and, where access permits, direct observation. Do not infer process compliance merely because a machine exists on the floor.
5. Follow an exception as well as a normal result
Request a relevant example of a nonconformance, rework decision or approved deviation. Trace how affected material was identified, who authorized disposition and what evidence permitted release. This tests whether the system handles problems, not just whether normal paperwork is available.
6. Reconcile final release and shipment
Follow inspection and test results back to the selected job, then compare release status, quantities and shipment identity. Record gaps explicitly. If a report cannot be linked to the sampled lot, the correct finding is missing traceable evidence, not an unsupported claim that the product definitely failed.
Which Manufacturing Records Should You Check?
For each stage, connect the requirement, the implemented control and the result. The table below is a starting worksheet; mark items not applicable only with a reason tied to the board construction and audit scope.
| Stage | Question and evidence to request | Warning signal |
|---|---|---|
| Engineering release | Which approved revision was built? Compare order, fabrication files, stackup, traveler and change approvals. | Different revisions in production and inspection records |
| Material control | Which laminate and other controlled materials entered this job? Review material identity, lot linkage and substitution approval. | A certificate exists but cannot be connected to the selected job |
| Imaging and etching | How were the correct artwork and relevant process controls applied? Review program revision, control checks and recorded exceptions. | Only a generic instruction, with no evidence for the sampled work |
| Lamination | For multilayers, what approved construction and controlled cycle were used? Review layup identity and relevant run records. | Construction changes without the required approval |
| Drilling and hole preparation | How were drill data, tools and the specified hole process controlled? Review the applicable job and process records. | Unclear program identity or unresolved abnormal results |
| Plating and finish | Which required characteristics were controlled and verified? Review applicable process records, measurement evidence and disposition of deviations. | Values reported without methods, limits or affected-lot linkage |

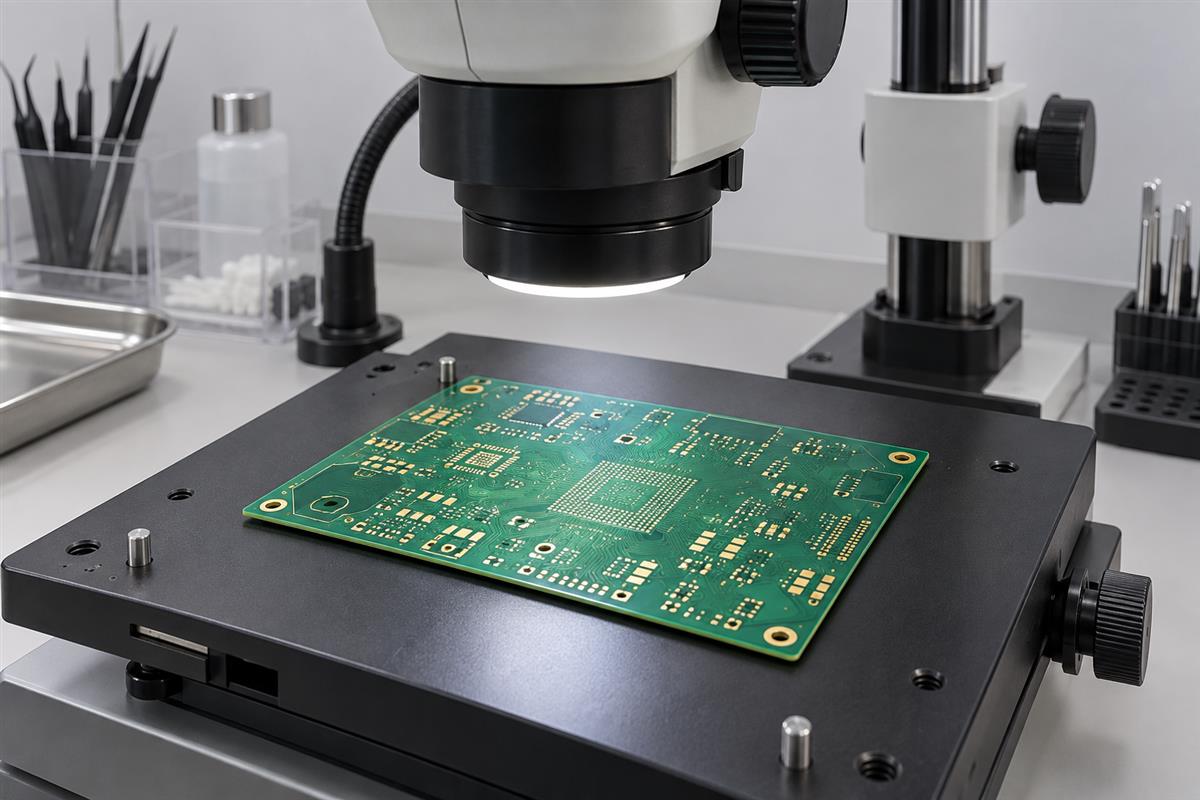

| Inspection and electrical test | What was tested against which revision and criteria? Review results, equipment status and retest disposition. | A pass label without the supporting traceable result |
| Final release and packing | Who released the job and how was identity preserved through shipment? Review release, quantity and packing records. | Held or unidentified material can mix with released boards |
This is an original evidence-request worksheet, not a list of mandatory records for every factory. Some controls may be electronic, some paper-based, and some not applicable to the selected process. Evaluate whether the evidence answers the agreed requirement rather than insisting on a particular software screen.
IPC’s public IPC-1782 excerpt identifies manufacturing and supply-chain traceability as its subject. Its public IPC-9121A excerpt places process auditing within printed-board troubleshooting. Use the full applicable contractual documents when setting formal requirements; these public excerpts are not complete acceptance specifications.
For measurements, ask three additional questions: was the method suitable for the characteristic, was the equipment acceptable at the time of use, and can the result be linked to the product being reviewed? A calibration sticker alone answers only part of that investigation. Keep inspection evidence and PCB testing evidence within their actual coverage; neither proves every process characteristic.
How Do You Write Findings Without Guessing?
Write the requirement, observed evidence and resulting gap separately. Avoid vague findings such as “quality control is weak,” and avoid declaring product defects when the evidence only shows a documentation gap.
| Finding field | What to record | What to avoid |
|---|---|---|
| Criterion | The applicable drawing, contract or controlled procedure and its revision | A personal preference presented as a mandatory rule |
| Evidence | The sampled job, record, observation and date | An unsupported statement about all production |
| Gap | Exactly how the evidence differs from the criterion | Assuming the root cause before investigation |
| Impact and scope | Known affected items, potential exposure and remaining uncertainty | Claiming no impact because the board looks normal |
| Action and ownership | Responsible owner, containment needs and agreed follow-up | A promise with no owner or completion evidence |
Example: the released drawing specifies revision C, but the inspection record presented for work order X identifies revision B. Record those two documents and ask how the inspection criteria were controlled. At this point you have a revision-evidence conflict. You have not yet proved that the boards were made to revision B. Investigate the manufacturing files, change history and affected product before deciding disposition.
Use your established severity and escalation rules. If none exist, agree on them before closing the audit. A missing cosmetic photograph and a loss of traceability affecting released product should not disappear into the same average score. Do not let a high total score cancel an unresolved issue that your approval procedure treats as a stop condition.
What Evidence Closes a Finding and Supports Supplier Approval?
Close a finding only when the required action is implemented and its effectiveness has been checked to the agreed extent. A revised document, training attendance list or reassuring email can be part of the evidence, but may not demonstrate that the problem has stopped recurring.
| Follow-up question | Useful evidence | Insufficient by itself |
|---|---|---|
| Was affected product controlled? | Identified scope, hold/release decisions and authorized disposition | “We told production to be careful” |
| Was the cause investigated? | Reasoned cause analysis tied to the observed failure | Blaming an operator without examining the process |
| Was the change implemented? | Released change and evidence it reached the relevant operation | An unsigned draft procedure |
| Did the change work? | Appropriate later samples or monitoring results | A new template with no completed records |
| Who accepted closure? | Reviewer decision, date and remaining restrictions | No named responsibility for acceptance |
Separate immediate correction from corrective action. Replacing a wrong record may correct the sampled instance; preventing the wrong revision from being used again requires understanding and addressing how the mismatch occurred. Choose the follow-up sample and timing according to risk and production opportunity. There is no universal number of later lots that proves effectiveness for every issue.
A supplier-approval summary should state the site, processes and technologies reviewed, sampled evidence, open findings, conditions of approval and the next review trigger. Possible triggers include a significant process transfer, material or subcontractor change, recurring escape or expansion to a different board technology. Do not turn a limited-scope audit into unrestricted approval.
- All findings have an owner and an agreed status.
- Product containment and release responsibilities are clear.
- Required corrective actions have implementation evidence.
- Effectiveness checks are complete or explicitly still pending.
- Any approval restrictions and follow-up dates are recorded.
- The decision is authorized by the responsible supplier-quality function.
FAQ
Does an ISO certificate replace a PCB process audit?
No. Verify its scope and relevance, but still assess the evidence needed for your product and supplier decision. A certificate does not answer every job-specific question.
Should every machine be inspected during one visit?
Not necessarily. Define the scope and use a risk-based sample. Record what was not covered rather than implying that a short visit examined the entire factory.
Is one traced job enough?
It can reveal whether records connect, but does not represent every shift, technology or lot. Expand the sample when the risk and findings require it.
Can the audit be done remotely?
Some document and record checks can be performed remotely with suitable access. State the limitations where direct observation or verification was unavailable.
Must the factory use a particular traceability system?
Not unless the agreement requires it. Evaluate the required identity, retrieval and linkage outcomes rather than the brand of software.
Is a missing record proof of a defective PCB?
Not automatically. It is a gap in evidence that requires investigation. Product disposition should consider the applicable requirements and what can actually be established.
Can a high checklist score override an open serious finding?
No. Apply the agreed approval and escalation rules. Averages should not conceal unresolved conditions that prevent approval.
What should be sent before requesting a supplier review?
Send the board technology, intended site and process scope, drawings, contractual acceptance requirements and the evidence you need. Agree on confidentiality before exchanging sensitive manufacturing information.
