PCBA Quality Control: Methods, Yield and Corrective Actions

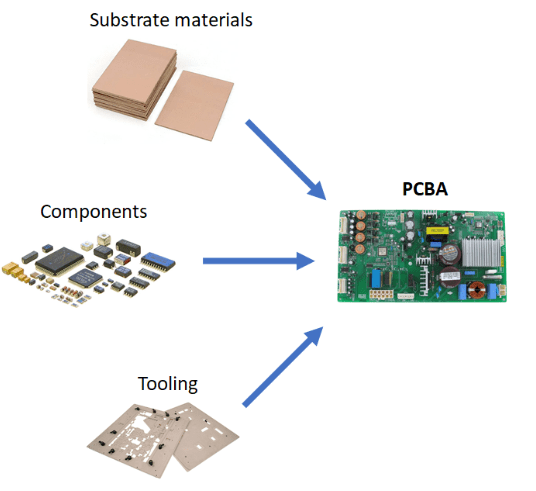

PCBA quality control is the set of checks, measurements and responses used to keep assembled circuit boards within agreed requirements. Inspection finds suspect work. Process control helps prevent the same defect from returning. A useful quality system needs both, plus a reliable record of what happened to each affected lot or unit.

The practical question is not how many inspection machines a factory owns. It is whether its chosen controls address your assembly’s risks, whether the measurements are trustworthy, and whether a recurring failure leads to a verified correction. This guide explains those decisions, including why a high final yield can hide substantial rework.

Choose the control method for the failure you need to prevent

Start with a specific failure and choose a control that can either prevent it or detect it early enough to contain the affected work. A method that detects a visible solder bridge may not detect a wrong resistance value, missing firmware or hidden connection problem.

For example, verifying a component reel against the approved manufacturer part number helps prevent wrong-part installation. Inspecting the finished assembly may catch some wrong parts, but visually identical packages can contain different electrical values. Prevention and detection therefore serve different purposes.

Hidden joints need particular care. OMRON’s technical discussion of CT X-ray inspection explains why visually inaccessible solder joints present a different inspection problem from exposed joints. Equipment capability and image interpretation still matter; an X-ray image is not a functional test result.

Use the separate guide to circuit-card assembly test coverage when comparing AOI, X-ray, ICT and functional testing. Here, the emphasis is how the resulting information controls production, not another list of instruments.

Set acceptance criteria before interpreting inspection results

A result can only be called acceptable against a defined requirement. Agree the relevant drawing, standard revision and class where applicable, product-specific limits, test conditions and decision authority before the lot is built.

IPC’s description of J-STD-001 and IPC-A-610 distinguishes soldering-process and material requirements from post-assembly acceptability. These documents can work together, but a workmanship reference does not define your firmware, interface performance or output accuracy. Use the revision and requirements agreed for the contract rather than an unspecified claim of “IPC quality.”

For a powered output measurement, write down the input voltage, load, operating mode, settling time, measured quantity and permitted range. For an inspection feature, identify the location, applicable criterion, inspection method and how ambiguous calls are reviewed. Without those details, two stations can return different decisions while both operators believe they followed the instructions.

Distinguish three limits:

• Product specification: what the assembly must meet under stated conditions.
• Process control limit: a statistical signal used to identify unusual process behavior.
• Test decision limit: the threshold applied by the approved measurement procedure, including any agreed treatment of uncertainty.

They are not automatically the same number. Do not widen a test threshold simply to reduce failures, or change a product specification because the current process cannot meet it. Changes need the appropriate engineering approval and a retained revision history.

Verify the measurement before changing the process

When readings or inspection calls vary unexpectedly, first check whether the measurement system changed. Otherwise, a factory can adjust a sound process to compensate for a dirty probe, unstable fixture, incorrect program or inconsistent inspection decision.

NIST’s gauge repeatability and reproducibility guidance treats measurement performance as something to characterize, including repeatability, stability and differences between operators or configurations. In plain language: does the same setup give consistent results, and do the intended alternative setups agree sufficiently for the decision?

1. Confirm identity. Check the board revision, test program, limit set, firmware and fixture version. A correct measurement under the wrong program is still the wrong test.

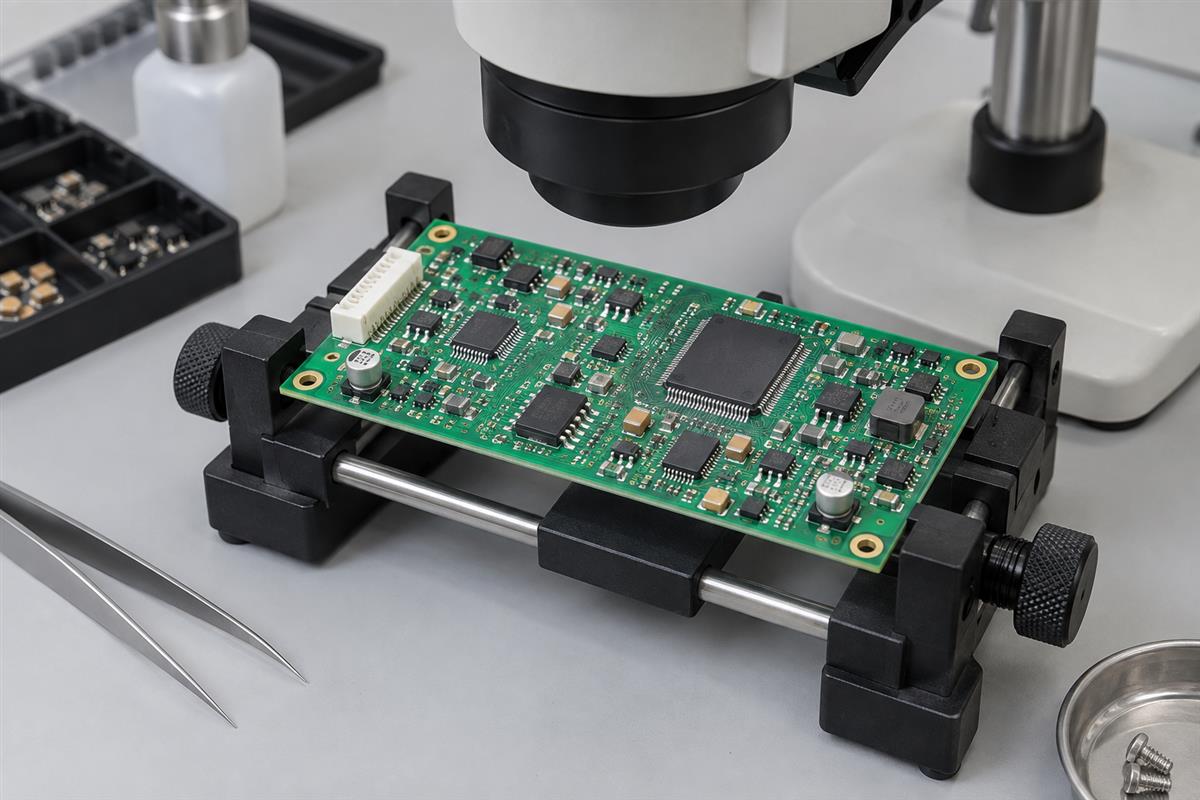

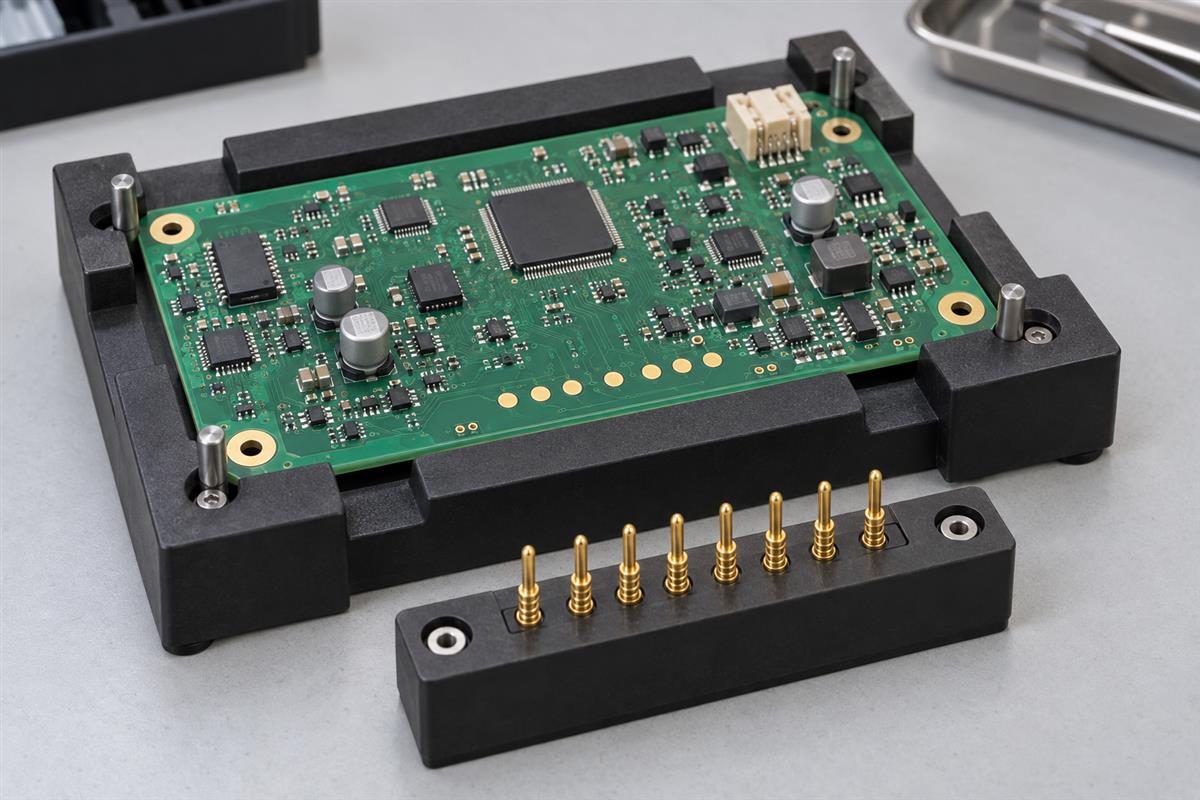

2. Check the complete measurement path. Include contacts, cables, loads, locating features, lighting and other relevant conditions, not only the instrument’s calibration label.
3. Repeat under controlled conditions. Use suitable representative items and a documented study. Do not repeatedly power or stress an unknown failed assembly outside its approved procedure.
4. Compare the intended operators or stations. Keep the product and procedure controlled so differences can be investigated rather than hidden in mixed data.
5. Challenge detection. Where safe and appropriate, verify that known relevant defects are rejected as well as confirming that approved references pass. One good reference does not establish every failure mode’s coverage.

For illustration, suppose the same assembly passes at station A but intermittently fails at station B. That does not establish that B is wrong. Preserve both logs, compare configurations and investigate contact and product behavior. A marginal assembly can react differently to two fixtures; automatically accepting the favorable result would hide the problem.

A false call means a conforming item was incorrectly flagged. An escape means a nonconforming item was accepted. Reducing false calls is useful only if it does not increase escapes. Review both when adjusting an inspection program. Never erase the original failure merely because a later attempt passed.

Read first-pass yield without hiding rework

First-pass yield measures how many units pass a defined process or test on their first attempt, without rework or retest. Final yield describes the accepted output after the defined recovery activities. Both can be useful, but they answer different questions.

Hypothetical example: 200 distinct assemblies enter a defined final-test gate. Of these, 184 pass the first attempt and 16 fail. After authorized diagnosis and rework, 12 of the failed units pass the required verification and four are scrapped. Assume all 200 have a final disposition, with no work still on hold.

These are teaching numbers, not PCBtry production results or an industry target. The 98% figure alone conceals diagnosis time, additional handling, replacement parts and schedule impact. It also does not reveal whether reworked units meet every required acceptance condition; that must be demonstrated separately.

Before comparing two reports, check the denominator, measurement gate, time period, board revision, product mix and treatment of retests. Count distinct units, not every test attempt as a new board. If some units remain on hold, state that explicitly rather than presenting a provisional result as a closed-lot final yield.

A report can also count defects rather than defective units. Ten findings on one assembly are ten defects but one defective assembly. A Pareto chart ranks recorded defect categories by frequency or another stated measure. It can help choose an investigation priority, but a frequent category is not automatically the highest safety risk, and its name is not a root cause.

Use control charts to detect change, not redefine acceptance

A control chart asks whether a process is behaving consistently over time. It does not replace product acceptance limits. A process can be stable yet produce unacceptable work, or show a concerning change before individual measurements cross a specification boundary.

NIST’s control-chart explanation describes both points outside limits and nonrandom patterns as reasons for investigation. Choose the chart, sampling structure and signal rules for the actual data; do not apply one internet rule to every paste measurement, defect count and yield percentage.

For example, paste measurements from different aperture sizes should not be pooled blindly into one distribution. A board mix change could move the average even when each process remained unchanged. Preserve the link between the data and the feature, product, program and time that produced it.

Capability indices such as Cp and Cpk compare process variation with specification limits under defined assumptions. NIST’s capability guidance explains the importance of a stable process and the distribution assumptions behind familiar indices. A high Cpk value without those conditions, a clear characteristic and credible measurements is not a general PCBA quality certificate.

For a small prototype lot, there may not be enough comparable data to support a meaningful capability claim. Detailed first-article findings, controlled settings and transparent defect records can be more useful than a statistical number built from inadequate data. Neither approach eliminates the agreed acceptance checks.

Close a recurring defect with evidence

A recurring defect is closed when the affected product has a controlled disposition and evidence supports the effectiveness of the corrective action. Removing a solder bridge repairs one occurrence; it does not explain why bridges keep appearing.

Consider a hypothetical connector J3 that repeatedly receives a visible bridge call after soldering. The following is an investigation framework, not a diagnosis or a fixed factory procedure.

1. Contain and verify the finding

Identify affected units and prevent their unintended release. Verify the bridge against the approved design and inspection criteria; a deliberate solder jumper must not be mistaken for a defect. Record the reference designator, defect location, time, board revision and inspection program.

Define the suspect population using traceability and the last relevant verified control. If the records cannot establish when the problem began, widen containment appropriately rather than assuming only the visibly failed boards are affected. Preserve original inspection and test results.

2. Separate possible causes from evidence

Compare failures by panel position, stencil, material lot, setup change and production interval. The pattern may suggest where to investigate, but it does not prove the cause. More paste, placement offset, lead geometry, contamination or a program issue require different evidence.

3. Make and verify an approved change

Choose a corrective action supported by the investigation. Record what changed and why. When practical, avoid changing several unrelated variables at once, because an improved result then becomes difficult to explain. If several changes are necessary, retain their scope and the limits of the conclusion.

Run the approved verification plan on the relevant product and conditions. Confirm that the bridge problem improved without creating insufficient solder or another defect. Define the observation quantity, time window and acceptance decision before calling the action effective. There is no universal “five good boards” rule.

4. Close product and process records separately

Reworked units return through the inspections and tests affected by the work. The lot’s release decision needs its own evidence. Separately, update the controlled instruction or setup when justified, assign responsibility and review later production for recurrence. A successful rework result and a successful corrective action are related but different conclusions.

The PCB assembly QC flow-chart example shows where hold and release decisions fit into the overall route. Use the investigation above to give those decisions substance.

What to include in a PCBA quality review

Provide enough information to connect the defect, the required behavior and the manufacturing configuration. A screenshot saying “yield low” is less useful than a small, well-defined dataset with the relevant build documents.

• Assembly part number, revision, BOM, placement data and assembly drawing.
• Required workmanship references, functional limits and approved deviations.
• Defect photographs or measurements with reference designators and unit or lot identifiers.
• First-attempt results, retest and rework history, scrap and open-hold quantities.
• Relevant material, equipment, fixture and program changes with dates.
• The decision needed: containment scope, inspection coverage, process review or next-build readiness.

For a manufacturing enquiry, contact PCBtry with the controlled files, quantity and quality requirements. Ask which checks, records and engineering-review activities are included in the proposed scope. Agree any additional test development, traceability or corrective-action deliverables explicitly rather than assuming they accompany every assembly order.

Frequently asked questions

Is PCBA quality control the same as final inspection?

No. Final inspection evaluates specified completed-product characteristics. Quality control also includes inputs, setup, process monitoring, trustworthy measurements and a defined response to failures. Finding defects at the end does not prevent their recurrence.

Does every board need every available inspection method?

No. Select methods and coverage from the product risks, accessible features and agreed requirements. Every unit passing one programmed check does not mean every possible defect was tested. Document important gaps and how they will be addressed.

Can a good final yield hide a weak process?

Yes. Rework and repeated testing can recover accepted output while consuming time and resources. Review first-pass results, distinct failed units, repair effort, scrap and unresolved holds alongside final yield. Compare reports only when their definitions match.

Is every AOI call a confirmed defect?

No. An automated call requires the defined review and disposition process. Some calls may be false positives, but dismissing them without evidence can create escapes. Retain the original call and the documented reason for its disposition.

Does a calibrated instrument guarantee a reliable test?

No. The full setup matters, including fixture contacts, cables, software, loads, operating conditions and the measurement procedure. Calibration is important evidence, but it does not by itself establish the suitability of every assembled test system.

Can a control-chart limit be used as the product tolerance?

Not automatically. Control limits describe process behavior using a selected statistical method. Product tolerances express requirements. Confusing them can either reject acceptable work unnecessarily or accept a stable process that does not meet the specification.

Is repairing a failed board a corrective action?

Repairing or reworking the board addresses that item. Corrective action addresses the cause of the problem and needs an effectiveness check. The product disposition and the prevention of recurrence should each have clear evidence.

Can quality-control records guarantee field reliability?

No. Records demonstrate the controls and results they actually cover. Long-term performance also depends on design, materials, environment and product-specific validation. Do not turn a workmanship pass, yield figure or short production test into an unsupported lifetime claim.
